Re: ktm kx 500 conversion
« Reply #15 on: December 06, 2014, 03:41:00 PM »
Hey guys where are you getting you pipes from for this conversion.

thanks
Shane
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #16 on: December 20, 2014, 12:25:48 PM »
Anybody got a shock and swingarm for a 2009 ktm sxf?
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #17 on: January 16, 2015, 01:13:41 PM »
Got a shock and a swing arm on the way... any suggestions for the front end? I was thinking Yamaha yz450 shocks. Do those make for good super moto shocks? And I'm looking at a custom triple clamp. What degree should I have it made at?

Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #18 on: January 20, 2015, 10:46:36 AM »
Made a little progress on it today.work has been kinda busy lately so I'm just working on it as I get time
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #19 on: January 31, 2015, 03:31:11 AM »
got some goodies in from todd pinsonnault. 2 balanced cranks with wossner rebuild kits :-D
Logged

Offline sandblaster

  • Administrator
  • Hero Member
  • *****
  • Posts: 8,275
    • OEM-CYCLE QUALITY USED PARTS
Re: ktm kx 500 conversion
« Reply #20 on: January 31, 2015, 03:39:07 AM »
KX1000 twin.... Sweet!!!  :-D
Logged
The four stroke engine: That's one stroke for producing power and three for wearing the engine out.

Offline alward25

  • Hero Member
  • *****
  • Posts: 1,349
Re: ktm kx 500 conversion
« Reply #21 on: January 31, 2015, 04:24:44 AM »
nice, no weld on the pin?
Logged
"Let there be light"

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #22 on: January 31, 2015, 06:55:27 AM »
Quote from: alward25 on January 31, 2015, 04:24:44 AM
nice, no weld on the pin?

I Guess not it must be something you have to request but I'm not to worried about it
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #23 on: January 31, 2015, 06:59:38 AM »
Logged

Offline sandblaster

  • Administrator
  • Hero Member
  • *****
  • Posts: 8,275
    • OEM-CYCLE QUALITY USED PARTS
Re: ktm kx 500 conversion
« Reply #24 on: January 31, 2015, 08:17:14 AM »
 :-o
Logged
The four stroke engine: That's one stroke for producing power and three for wearing the engine out.

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: ktm kx 500 conversion
« Reply #25 on: January 31, 2015, 10:10:37 AM »
Quote from: vagassasson on January 31, 2015, 03:31:11 AM
got some goodies in from todd pinsonnault. 2 balanced cranks with wossner rebuild kits :-D

What factor did u balance at? and what year type cranks are they?

Be very carefull handling them as is takes very little to untrue a unwelded kx crank :-)
very little crank pin diameter in webs  {about 15mm  in kx/ a cr5 has about 22mm and a thicker pin, this makes the kx crank very easy to move out of true

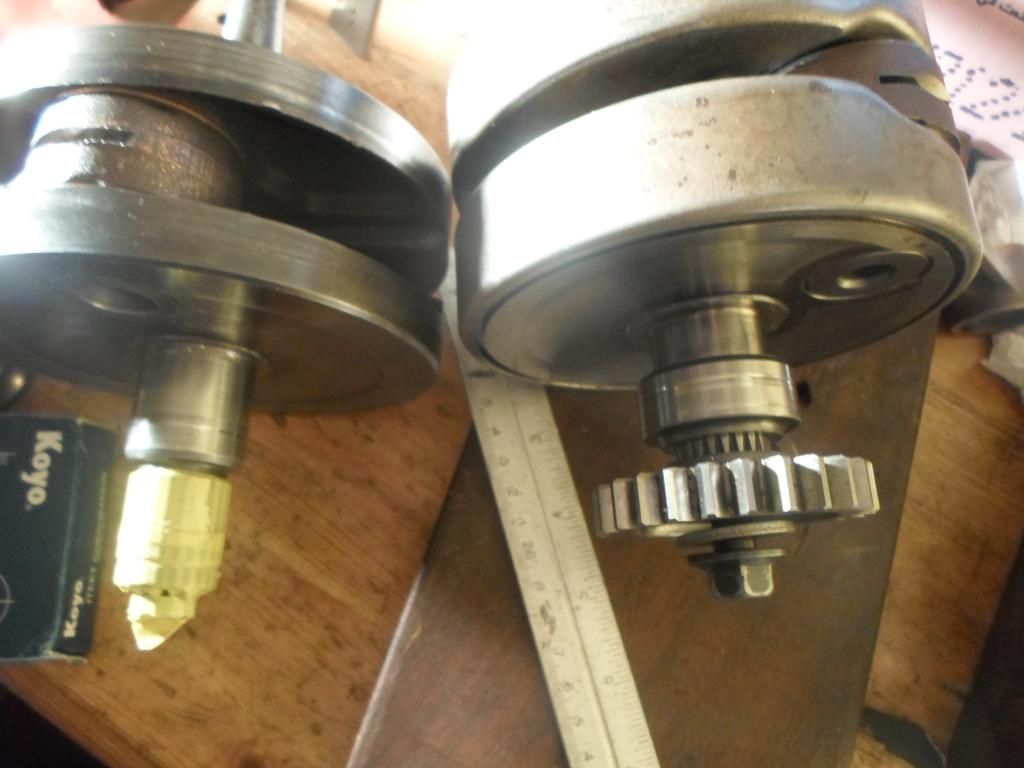

a pic to compare
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #26 on: January 31, 2015, 11:32:15 AM »
One crank is from a 94 the other is from a 98.
I had a shop do the work so I'm not sure what the balance factor is. The shop I had it done at was pinsonnault racing and he only needed to know what piston I was going to run and in this case it was a 86mm wossner
Logged

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: ktm kx 500 conversion
« Reply #27 on: February 01, 2015, 12:13:36 AM »
Quote from: vagassasson on January 31, 2015, 11:32:15 AM
One crank is from a 94 the other is from a 98.
I had a shop do the work so I'm not sure what the balance factor is. The shop I had it done at was pinsonnault racing and he only needed to know what piston I was going to run and in this case it was a 86mm wossner

The cranks look a bit unusual with the alignment  holes { seen these on works crank /think alward25  has one }
none of my 89on cranks have holes

most  shops use 50% factor /sometimes the scib the info between the webs,can be hard to see
think motorrad had his crank done at 60%
 always nice to know what factor your running and how it feels in differant chasssic etc
good luck with the build,
Logged

Offline vagassasson

  • Full Member
  • ***
  • Posts: 109
Re: ktm kx 500 conversion
« Reply #28 on: February 02, 2015, 10:35:56 AM »
Went to assemble bottom end and I was missing a crank bearing  :x have to wait on new ones to get here
Logged

Offline dave916

  • Hero Member
  • *****
  • Posts: 546
Re: ktm kx 500 conversion
« Reply #29 on: February 02, 2015, 11:01:23 PM »
Quote from: vagassasson on February 02, 2015, 10:35:56 AM
Went to assemble bottom end and I was missing a crank bearing  :x have to wait on new ones to get here

I would  Use  oem crank bearings and I would not use lockite on crank journal flywheel side
Logged
